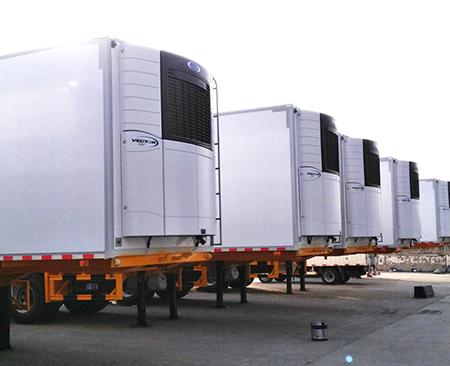

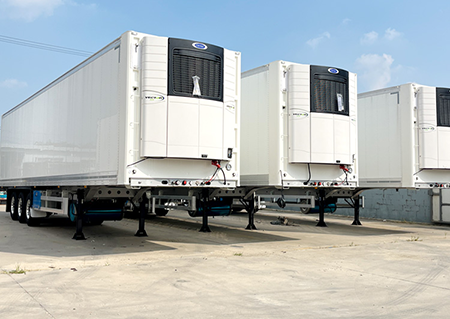

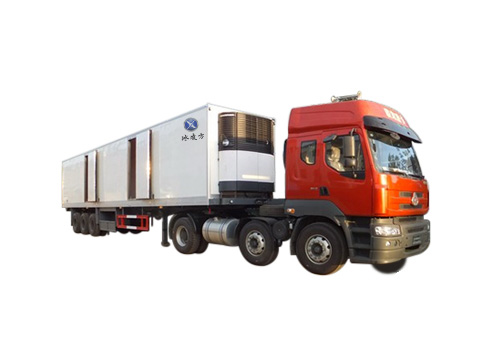

Semi refrigerated trailer
Product features：
Light weight, good economic benefits
1. Totally enclosed polyurethane plate is used to bond FRP structure.
2. There is no metal framework and connector for refrigerated and insulated vehicles.
3. The car body is lighter than the similar products, which can effectively reduce the transportation cost.
Strong structure, durable
1. The chamber body is made of high molecular polyester material by hot pressing, and adopts a fully enclosed structure.
2. The integrated internal stiffener greatly increases the strength of the panel.
3. The plate is bonded with high strength and high sealing adhesive to form a whole and has good corrosion resistance.
Good thermal insulation performance to meet the transportation needs
1. Sandwich pressing method is adopted to ensure that there is no air gap in the board
2. There is no metal cold bridge and the thermal conductivity is low
Product parameters
| Term | Semi refrigerated trailer |
| DIMENSIONS & WEIGHTS | Overall size: 14600*2550*3980mm |
| Inner size: 13900*2340*2400mm | |
| Fifth wheel height: 1, 300 mm. | |
| Front overhand: 470 mm. | |
| 1.2 Weights and loads | |
| Max. Payload: 35, 000 kg | |
| Tare Weight approx.: 4520 kg | |
| RUNNING GEAR | Suspension System: |
FUWA mechanical tandem suspension capacity 2× 14T, with 6 x 8 plate springs, 16mm thickness and 90mm width | |
| Axles: | |
| FUWA axles 2 × 13T with drum brakes S-Cam 420× 200 | |
| Wheels: | |
| 8.0V20, 10 holes for tube tyres 12.00-20; Made in China | |
| Tyres: | |
| Triangle tire, 12.00-20, 9 units, made in China | |
| King pin | |
| Forged steel, 3.5", welded in. | |
| Landing Gear | |
| Jost 19, 2 speed, 24T lifting capacity. | |
| CHASSIS | Main Beams |
Designed to carry 1 x 40 ft, or 1 x 20 ft., or 2 x 20 ft...Provided with 12 Nos. Retractable type Multilock twist locks | 500mm height, Low Alloy (Q345 ) by automatic submerged arc welding; Top Flange 14mm, Botton Flange 16mm, Middle Flange 6mm. |
| Surface preparation & painting: | |
On completion of fabrication, all steel parts are steel blasted to to SA 2.5, then Two Synthetic Enamel Finish Paint, Single color as per customers choice | |
| LIGHT SYSTEM: | Standard electrical equipment 24V with rear lights on bumper, electric connection type SEA 7 poles mounted on the front bearer. |
| BRAKE SYSTEM: | WABCO relay emergency valve indirectly to two tank system (No ABS system). |
| ACCESSORIES | SPARE WHEEL HOLDER(WINCH) |
| REAR BUMPER; | |
| RUBBER MUD FLAPS BEHIND REAR WHEEL. | |
| COLOUR | As your require |
